Oilfield Services

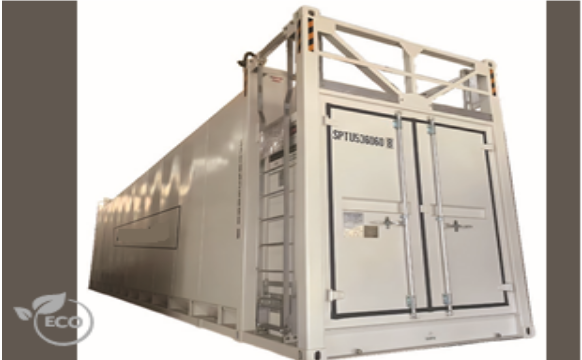

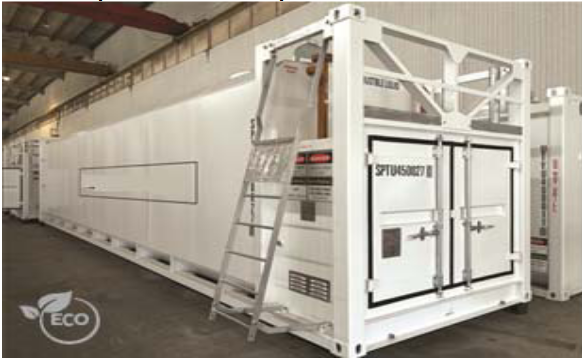

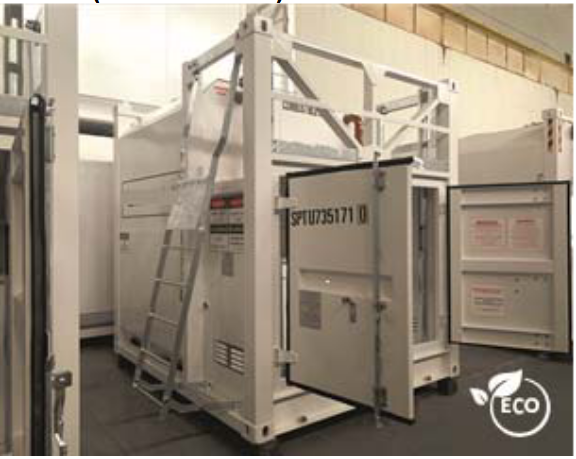

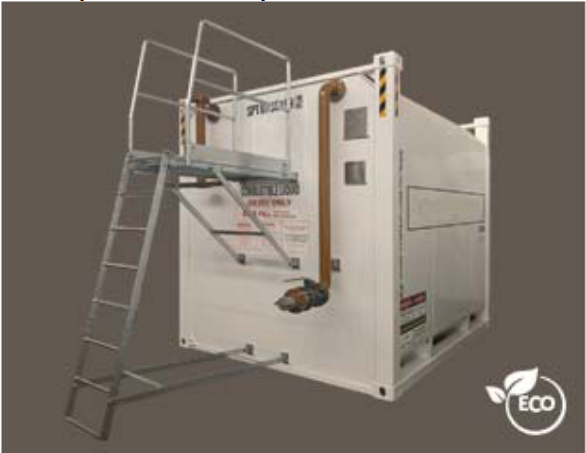

Fuel Storage Solutions

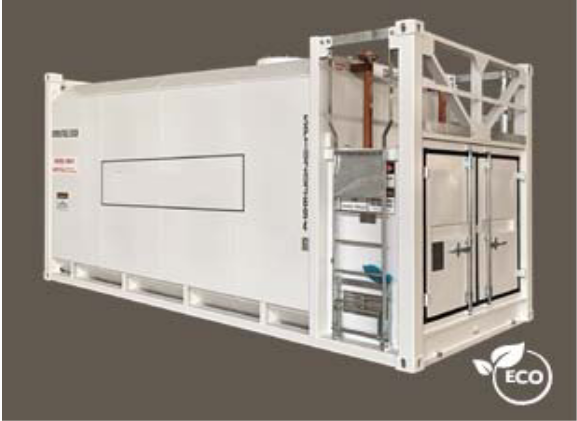

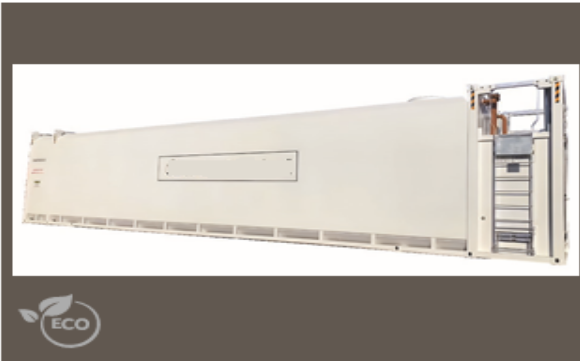

BT-12 (BULK TANK)

Specifications

Safe Fuel Fill Level: 11240 Liters (95%)
Capacity: Standard
Length: 2991 mm
Width: 2438 mm
Height: 2896 mm
Bare Weight (Empty): 3990 Kg
Pump Bay: Yes

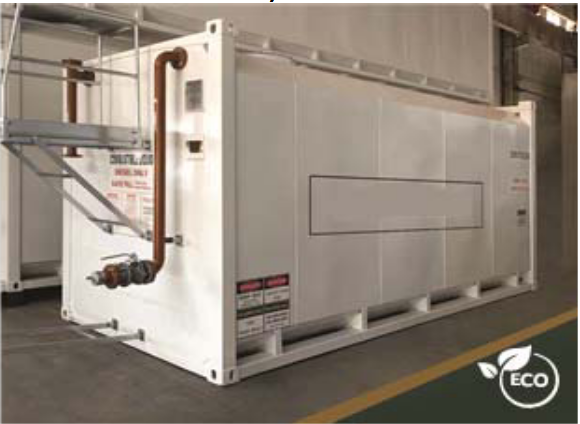

BT-20 (BULK TANK)

Specifications

Safe Fuel Fill Level: 17274 Liters (95%)
Capacity: Standard
Length: 2991 mm
Width: 2438 mm
Height: 2896 mm
Bare Weight (Empty): 3820 Kg
Pump Bay: Yes

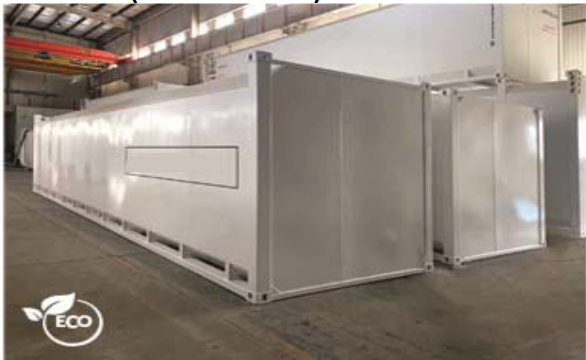

BT-30 (BULK TANK)

Specifications

Safe Fuel Fill Level: 29350 Liters (95%)
Capacity: Standard
Length: 6058 mm
Width: 2438 mm
Height: 2896 mm
Bare Weight (Empty): 6390 Kg
Pump Bay: Yes

BT-38 (BULK TANK)

Specifications

Safe Fuel Fill Level: 35380 Liters (95%)
Capacity: Standard
Length: 6058 mm
Width: 2438 mm
Height: 2896 mm
Bare Weight (Empty): 6280 Kg
Pump Bay: No

BT-69 (BULK TANK)

Specifications

Safe Fuel Fill Level: 65550 Liters (95%)
Capacity: Standard
Length: 12192mm
Width: 2438 mm
Height: 2896 mm
Bare Weight (Empty): 11380 Kg
Pump Bay: Yes

BT-75 (BULK TANK)

Specifications

Safe Fuel Fill Level: 71720 Liters (95%)
Capacity: Standard
Length: 12192mm
Width: 2438 mm
Height: 2896 mm
Bare Weight (Empty): 11100 Kg
Pump Bay: Yes

BT-80 (BULK TANK)

Specifications

Safe Fuel Fill Level: 78790 Liters(95%)
Capacity: Standard
Length: 14630 mm
Width: 2438 mm
Height: 2896 mm
Bare Weight (Empty): 16050 Kg
Pump Bay: Yes

BT-100 (BULK TANK)

Specifications

Safe Fuel Fill Level: 97185 Liters (95%)
Capacity: Standard
Length: 14630 mm
Width: 2438 mm
Height: 3550mm
Bare Weight (Empty): 18500 Kg
Pump Bay: Yes

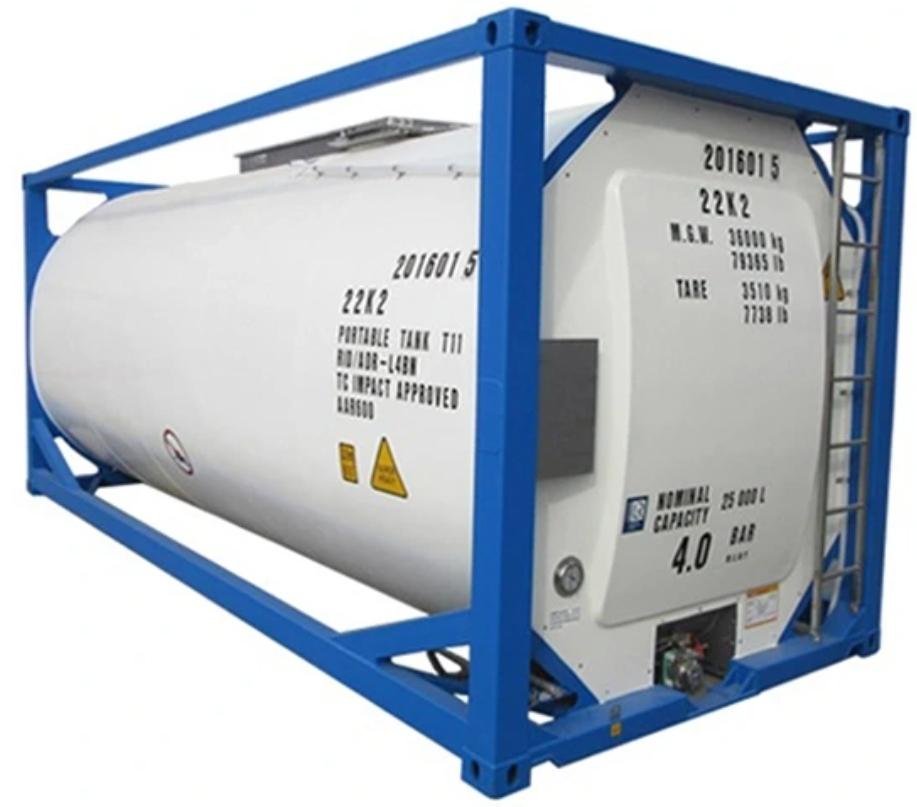

20ft ISO Tank Container T4

Specifications

External size: 6058x2438x2591 mm
With LR Certification
Shell: SS304
Frame: SPA-H
Design Pressure: 1.76 Bar
Capacity: 25000L
Designed asper ASME standards including steam heating and insulation

Standard Features

UL142, ULCS601, AS1940, AS1692, AS1657 APPROVED.
Self-bunded double wall design.
Fluid level dipstick for tank and interstitial space.
Vent pipe for tank and interstitial space.
Corner container blocks for easy of transport.
Galvanized access ladder and platform.
Access manhole.

Incoming

Tanker fill pipework.
Fire safe flanged ball valve, camlock adaptor and cap.
Non-return valve.
Hydraulic overfill valve with optional unload pump.
High level alarm battery powered.

Outgoing

Anti-siphon valve.
Pipework terminates with ANSI flanges.
Sockets for the mounting of submersible pumps.

Pump Bay

Pump Bay complete with water/product drain valves.
Access for hoses.
Lockable bund doors with rubber dust seal.
Bund ventilations.
Front earth connection.
Built-in safety hand rail system.

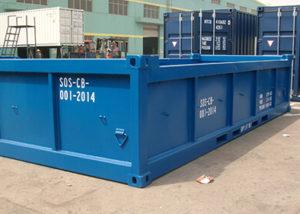

Cargo Baskets

Dost Engineering offers a range of offshore baskets in a several sizes suitable for a variety applications, optimized for effective and safe cargo storage and transportation. Our safe stacking design ensures the optimal utilization of often limited rig and deck floor space. All our cargo baskets have been designed with a full compliment of load securing points with additional net options to eliminate risk of lift set snagging on cargo. Custom designed and manufactured cradles can also be installed to enhance the security of fragile and high value cargo.

All baskets are available for sale or long or short term rental or can be manufactured on shortest lead time as per your requirements.

Key Features Designed and manufactured to DNV 2.7 – 1/ EN12079 standards Range of sizes for all standard applications Ex-stock availability for urgent requirements for short or long term hire Safe stackable design for optimized floor space Provided with internal swiveled tie down points to ensure security.

Current Options

10 Foot Half-Height Container

20 Foot Half-Height Container

Pumps and Accessories

We offer engine or electrical explosion proof motor driven centrifugal pumps in both lower and higher pressure ranges to provide the versatility for many industrial applications. Due to their large free passage, the pumps are highly suitable for projects that require pumping of fluids such as drilling mud, sewage water or contaminated waste water. All pumps are equipped with enhanced safety features including , spark arrester, emergency stop switch and automatic level control.

Currently Offered:
Ball Valves
Butterfly Valves
Globe Valves
Check Valves
